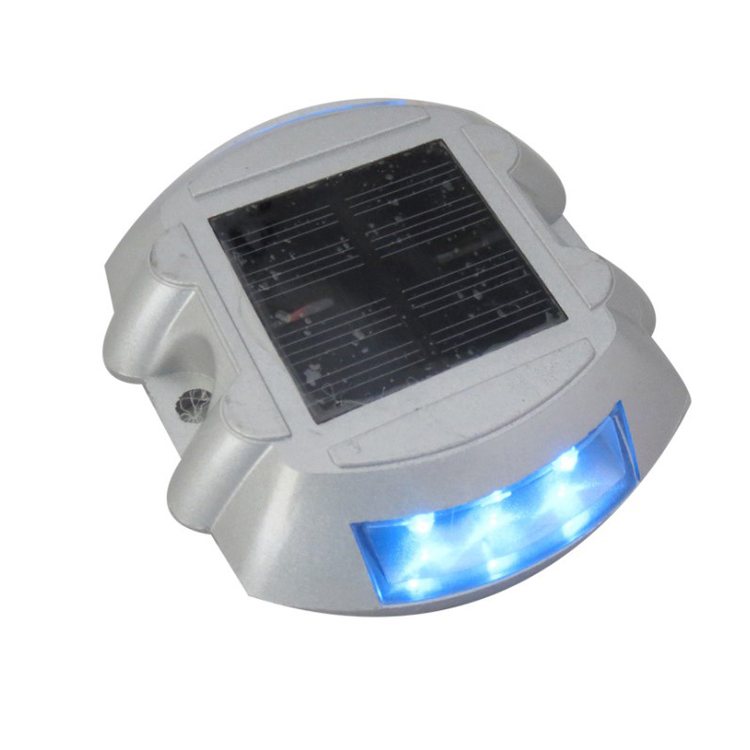

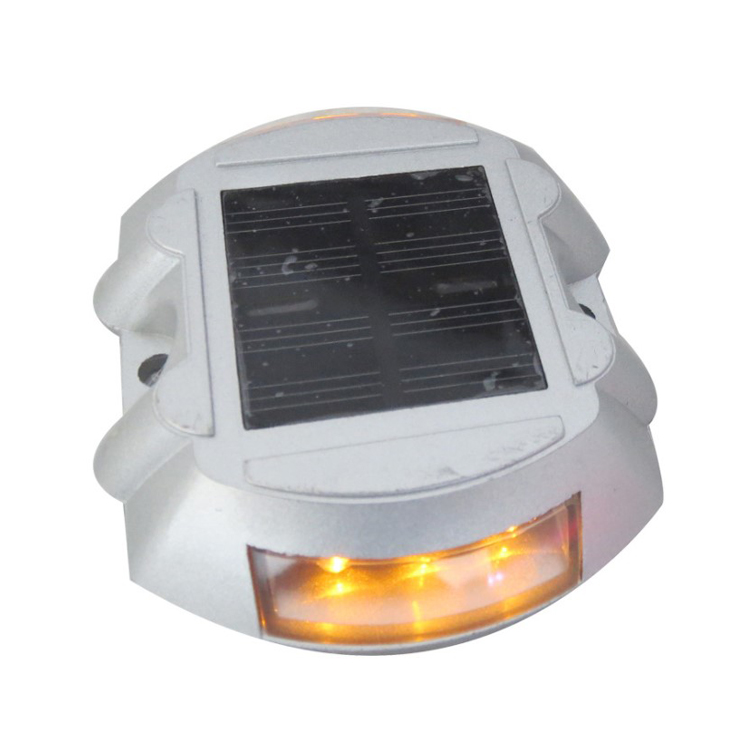

Design Solar Charging LED Reflector for Road Warning in Red Blue Yellow White Green

Name: Design Solar Charging LED Reflector for Road Warning in Red Blue Yellow White Green
Brand: Safebuild
Price: 10.00 USD

Buy cheap Design Solar Charging LED Reflector for Road Warning in Red Blue Yellow White Green product

Place of Origin : Shandong, China

Brand Name : Safebuild

Model Number : 104*124*23

Type : Road Cone Sign

Material : Aluminium+PC

Feature : High Reflection

Color : Red

Product name : LED Solar Road Stud

Name : LED Road Stud

Application : Road Warning

Size : 104*123*23mm

Keywords : Road Safety Stud

LED Color : Red Blue Yelow Write Green

Packaging Details : Export standard bundle or as clients request

Port : Qingdao, Tianjin port, China

Supply Ability : 200000 Piece/Pieces per Year

MOQ : 200 pieces

Price : $10.00/pieces 200-1999 pieces

Contact Now

Products Description

Road studs reflective studs for the highway. They are also known as raised road signs.They are a kind of traffic safety facilities. It is mainly installed in the middle of the road marking line or the middle of the double yellow line to remind the driver to drive according to the lane through its reverse reflection performance. The specifications of the spike/stud are generally 100mm*100mm*20mm, and the maximum height is not more than 25mm.
There are a variety of reflectors, reflective beads, LED light, reflective film and so on. According to the material they are made of they can be divided into:
1. Cast aluminum road studs;
2. Plastic road studs;
3. Glass road studs;
5. Solar road studs;

Solar studs are now widely used for controlling traffic flow with a wide number of applications. In practice, such systems operate well above the road surface with a number of well known and widely accepted colors, with lights in particular orientations to make the message to a driver clear and univocal, thereby improving the traffic flow of the road and enhancing safety aspects. The new designed and patent solar stud could stand the pressure of 30 Tons so that cars can drive on the solar led marker lights directly.

Design Solar Charging LED Reflector for Road Warning in Red Blue Yellow White Green

Solar road stud is a kind of spike, which is set along the road surface and used at night or in rain or fog to indicate the direction of the road. It is composed of reverse reflection material, shell, solar panel, LED and control device. It is a visual induction facility with active luminescence and passive reflection performance, which is usually used in combination with the marking line. The working principle of solar energy road stud, solar panels absorb sunlight during the day, the solar energy into electrical energy stored in the storage devices (batteries or capacitors), in the evening, the electricity automatically converted into light energy storage device (through the photoelectric switch control), through the LED light path outline, induce the driver line of sight.
This cast aluminum reflective solar road stud battery, life of more than 10 years, IP68, the solar panel area is larger, charging efficiency increased by 30%, more suitable to press in the road stone such as vehicle pressure does not fall.

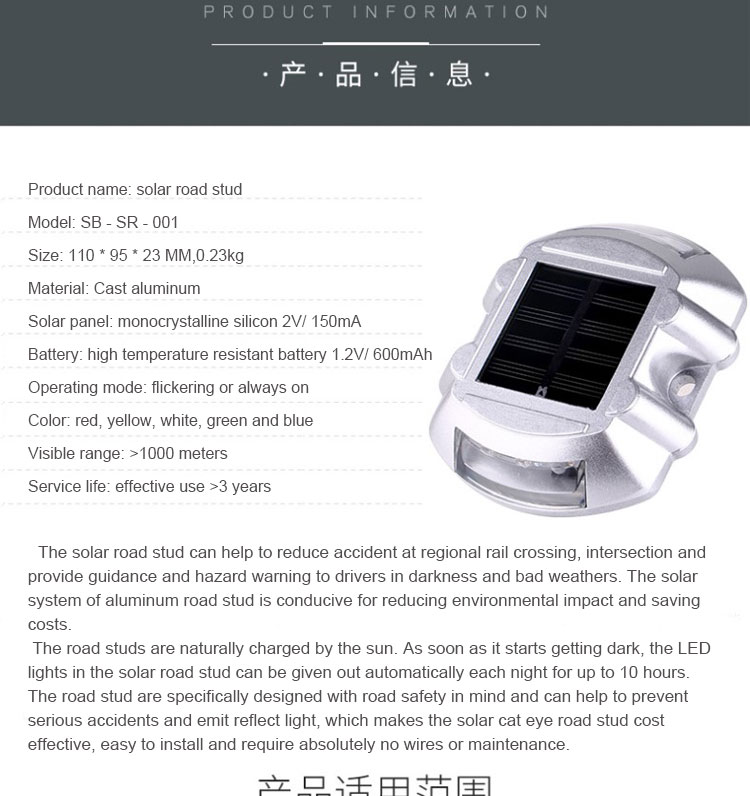

Details Images

Why Choose Us

Product Features:
Mould is formed at one time with a carrying capacity of more than 20 tons.
Charged continuous flicker for 200H or constant brightness for 40H
Strong waterproof ability, solar panels, electronic components and LED through special technology sealed in the shell, long-term water road can be used normally.
Efficient import of monocrystalline silicon solar panels, the conversion rate can be as high as 17%.
Service life: 3-5 years.
It is easy to install and can be fixed with epoxy glue or screws

Company Profile

Shandong Safebuild Traffic Facilities Co.,Ltd was established in 2015. It is located in Liaocheng City, Shandong Province, China. We specialise in manufacturing and exporting Highway Guardrail and other accessories such as traffic safety products.c

Our company has an advanced production line of plastic spraying and hot-dip galvanizing for guardrail . According to the
different construction environment, and corresponding surface treatments can be adopted to achieve good corrosion resistance, moisture resistance and weather resistance. We also specialise in the production of guardrail accessories like reflectors and other road safety products such as road suds.

Our aim is to Safebuild people, with our professional, wholehearted and devoting spirits as well as our remarkable products quality and favorable service system , sincerely hope to work together with the vast number of clients!

Installation Instructions

FAQ

1.Q:Are you a factory or trading company?
A:We are factory which in this field for more than 10 years.

2.Q:Where is your factory located? How can I visit there?
A:Our factory is located in Liaocheng City, Shandong Province, China. All our clients, from home or abroad, are warmly welcome to visit us!

3.Q:How can I get some samples?
A: We are honored to offer you samples.Pls send sample inquiry and leave us your email ,then we will send you more information about the samples for your reference.

4.Q:How does your factory do regarding quality control?
A:Quality is priority. All staffs always attach great importance to quality controlling from the very beginning to the very end.
Our factory has gained ISO 9001 and SGS authentication.
